Agent accept the difference report (Transshipment - Import)

Actors

Shipping Agents

Description

Accept all differences declared by Stevedores.

Shipping Agent have to accept even if there is no difference. You also have to accept supplementary or missing cargo unit.

Consult the difference report for a stopover

Go to the bill of lading details screen. Click on “Unloading operations” menu in Import section:

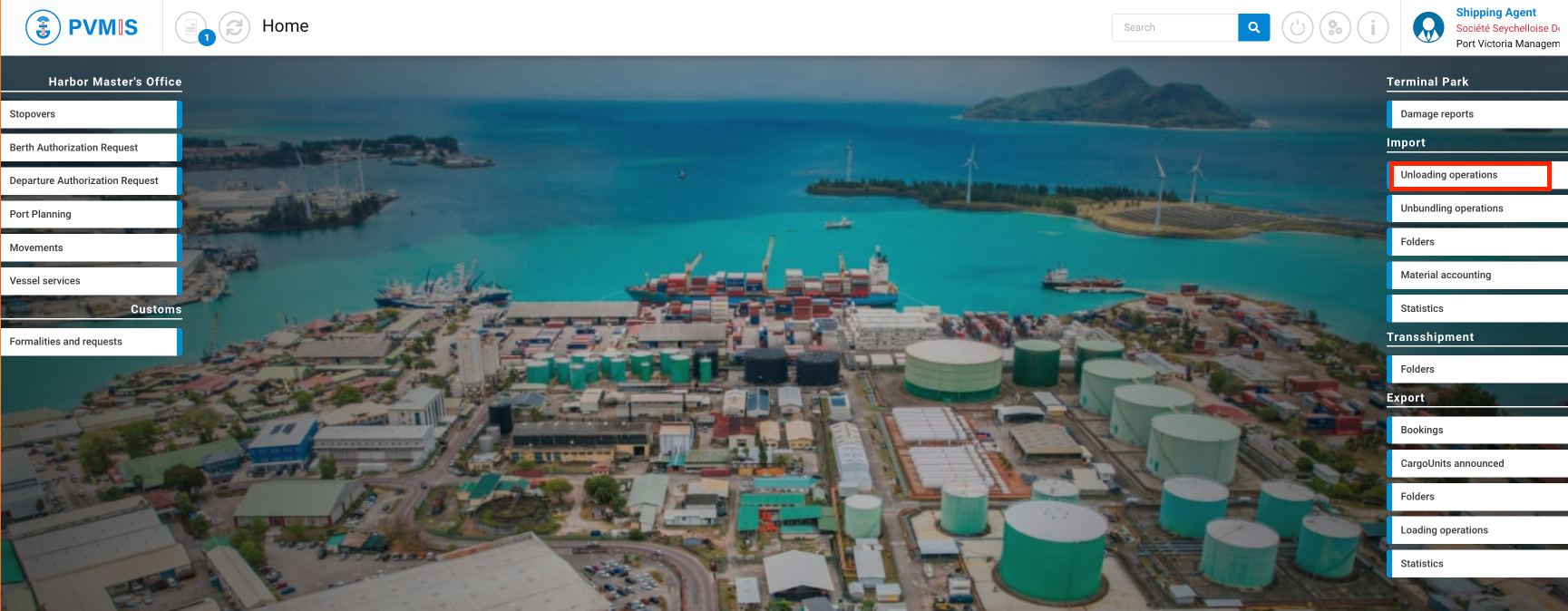

Capture d’écran 2023-11-10 à 11.09.24.png

A list of all stopovers corresponding to the date range is displayed. Click on Difference report on the associated stopover.

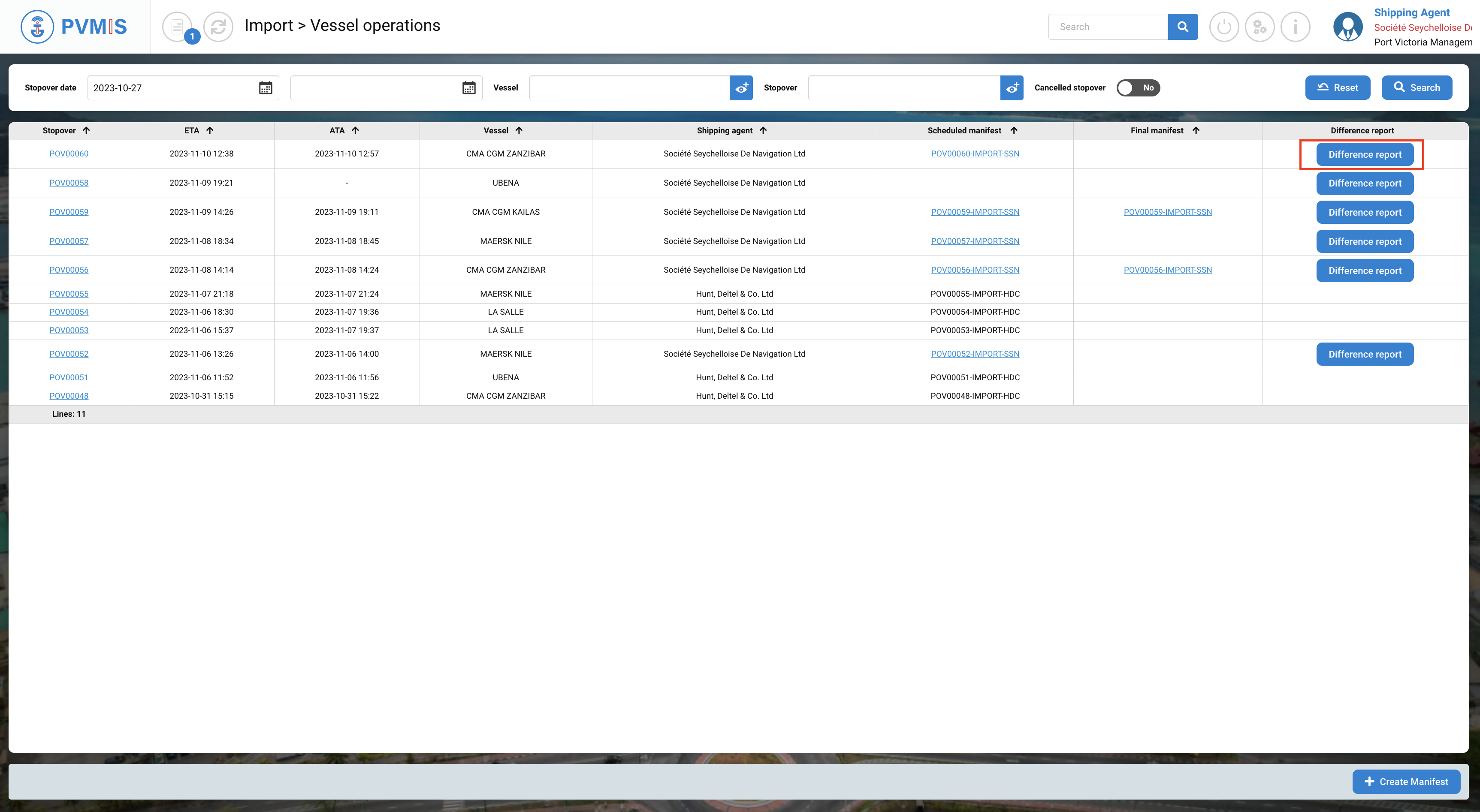

Capture d’écran 2023-11-10 à 11.06.01.png

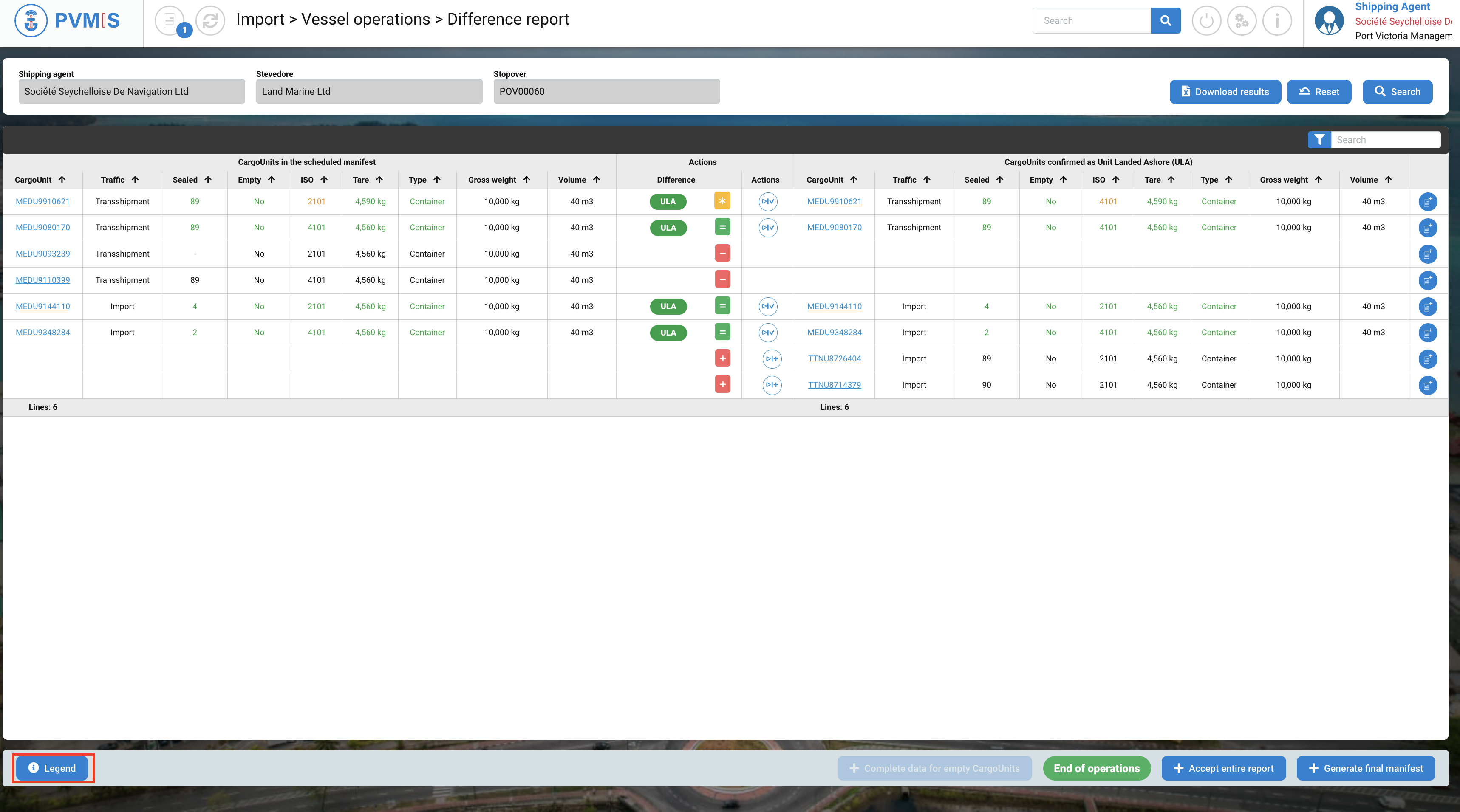

Upon redirection to the difference report as a shipping agent, your task is to accept all differences that have been declared by the stevedores. These differences will be highlighted in orange, while the corresponding information will be displayed in green. To understand the possible actions to accept differences, you can click on the "Legend" button:

Capture d’écran 2023-11-10 à 11.10.09.png

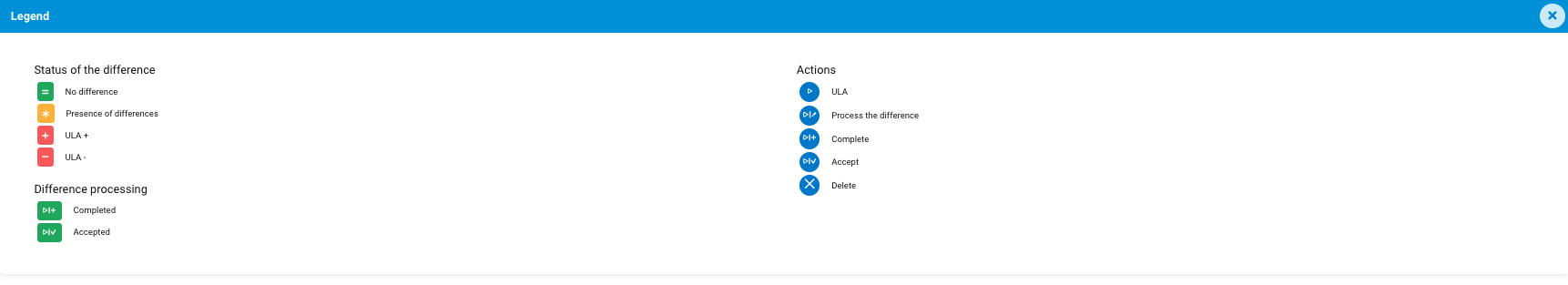

You can consult guidance on how to proceed with accepting these differences.

Capture d’écran 2023-09-18 à 11.58.50.png

In the Actions column, if you click on the icon labelled “Process of the difference”, it means that you are accepting the reported difference. This action confirms your acknowledgment and approval of the stated discrepancies.

Capture d’écran 2023-11-10 à 11.11.40.png

After clicking on these icons, you will be taken to the difference form for each CargoUnit. On the right-hand side of the screen, you can view the statuses of a CargoUnit. You can see that the cargo unit is marked as Landed QuaySide (LQS). This means that it has been correctly unloaded.

Click on Accept differences status button:

Capture d’écran 2023-11-10 à 11.12.20.png

Once you have accepted the difference for a CargoUnit, the table will be updated, and no further actions can be taken on it. In the Difference column, you will see the “Accepted” icon, indicating that the reported difference has been acknowledged and validated.

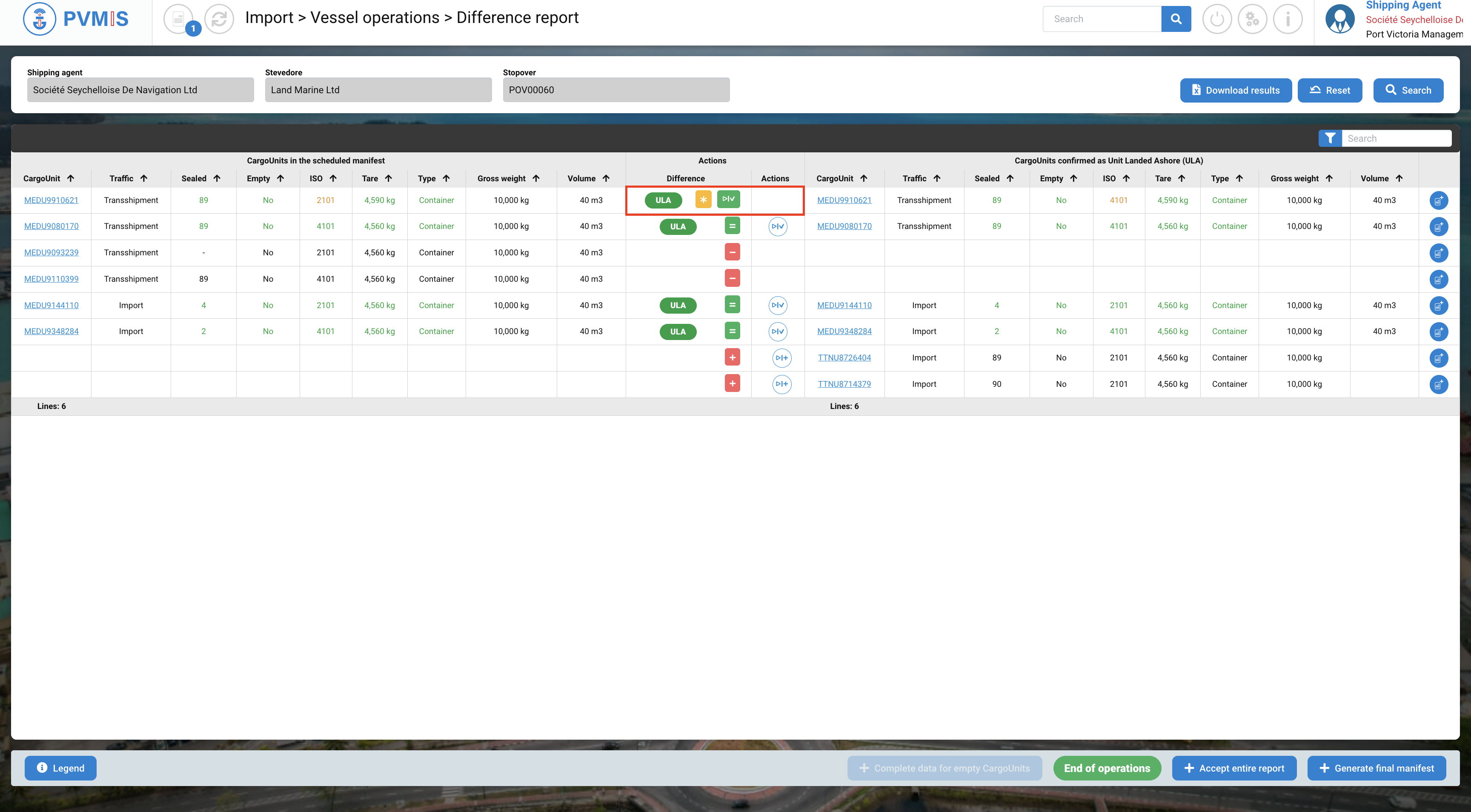

Capture d’écran 2023-11-10 à 11.14.26.png

You can accept the differences for each CargoUnit or Accept the entire report by clicking on the button at the bottom of the screen.

Capture d’écran 2023-11-10 à 11.14.59.png

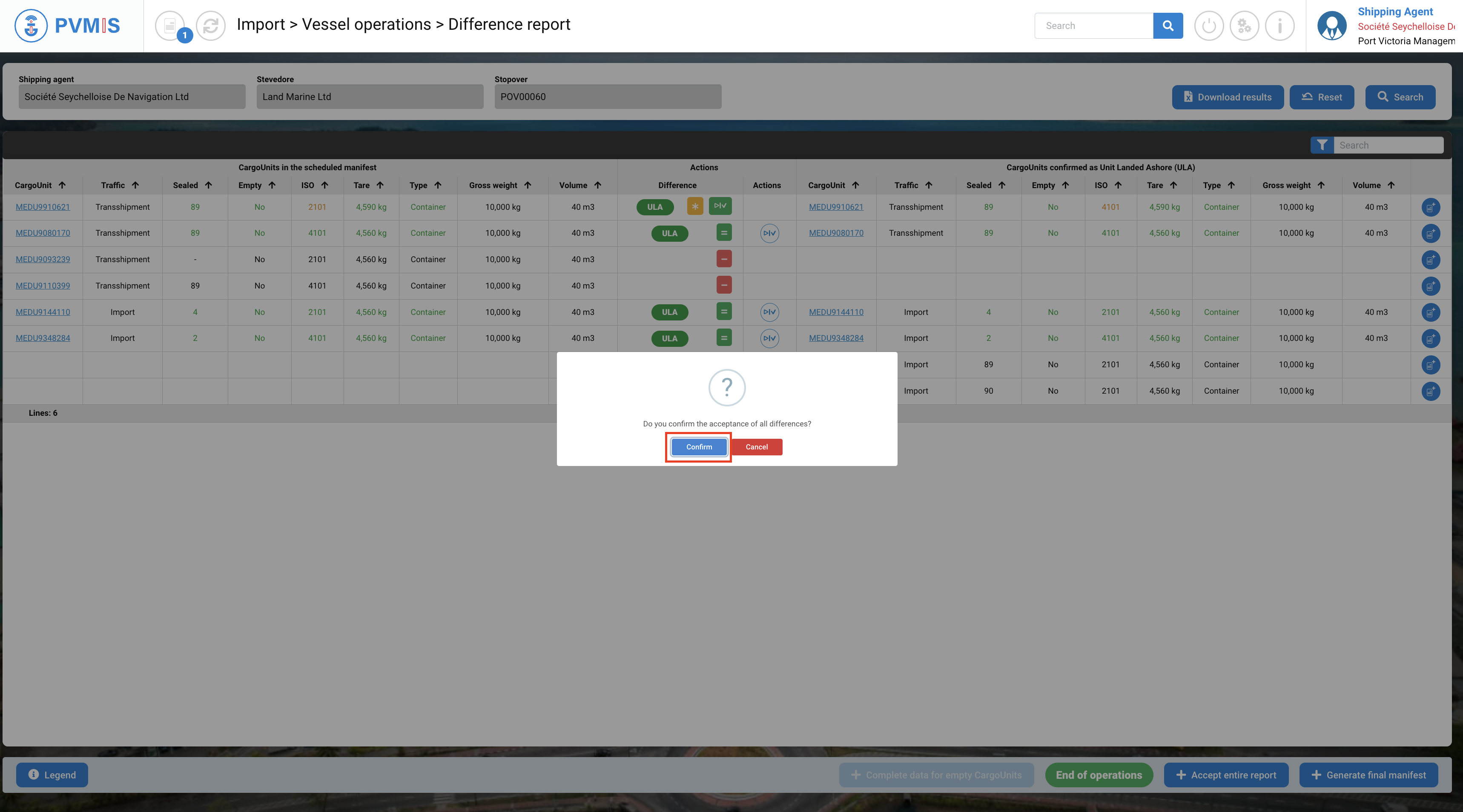

Then click on Confirm.

Capture d’écran 2023-11-10 à 11.15.31.png

Container not included in the scheduled manifest

This is represented by a “red plus”, indicating that the cargo unit was not in the scheduled manifest.

The shipping agent must then indicate which Bill of Lading is linked to this cargo unit, mainly to inform customs of the contents and third parties linked to this new cargo unit.


In the screen above, click on the “Accept” button to do the completion on an unannounced cargo unit. It brings you to the completion screen:

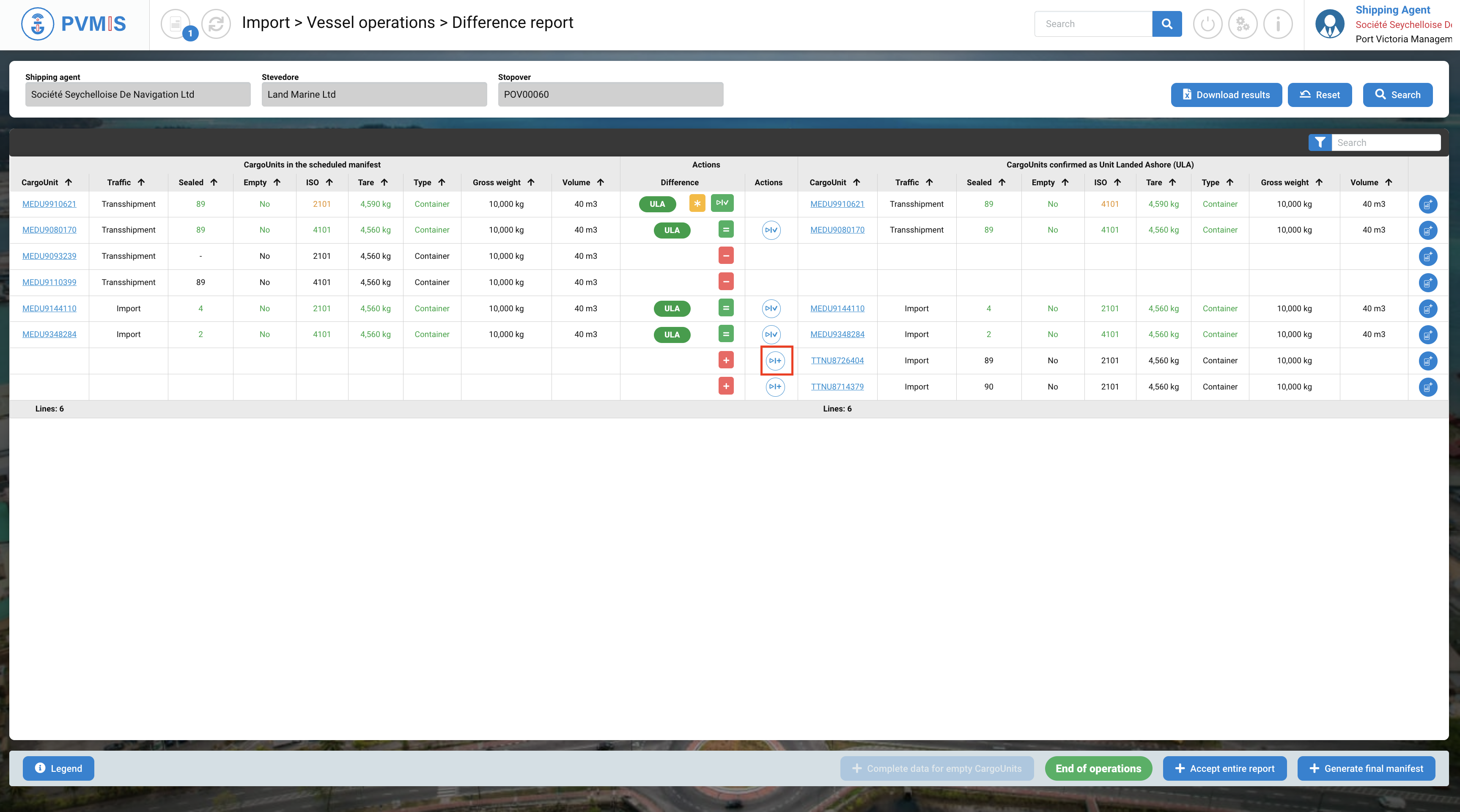

Capture d’écran 2023-11-10 à 11.16.20.png

Indicate if the unplanned CargoUnit needs to be attached to a new Bill of Landing or an existing BL because there is no scheduled manifest.

Attach an existing BL

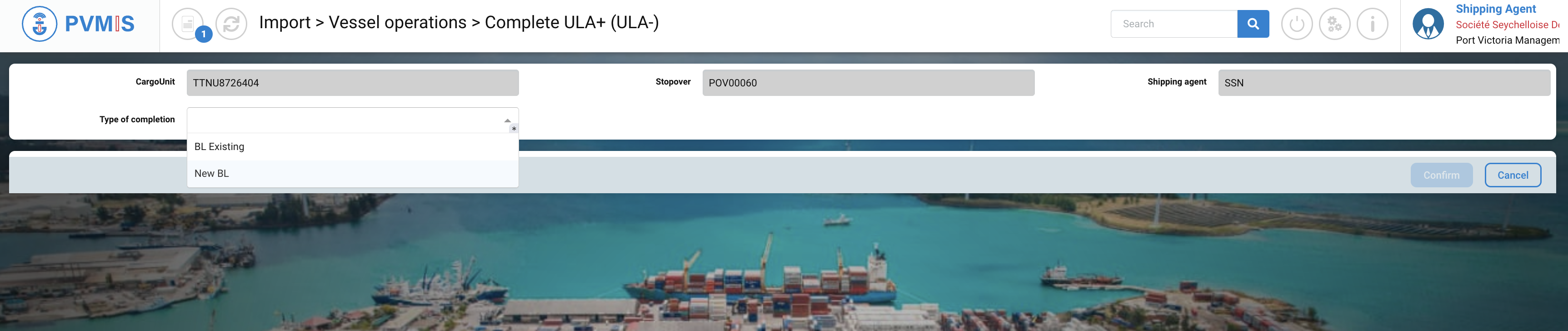

Select BL Existing in the Type of completion field:

Capture d’écran 2023-11-10 à 11.17.16.png

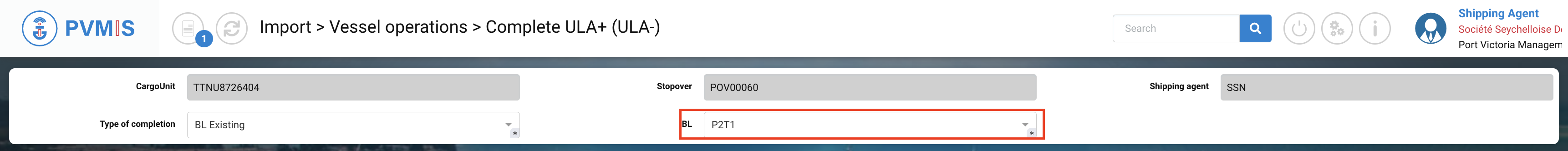

Select the corresponding existing BL in the BL field:

Capture d’écran 2023-11-10 à 11.20.00.png

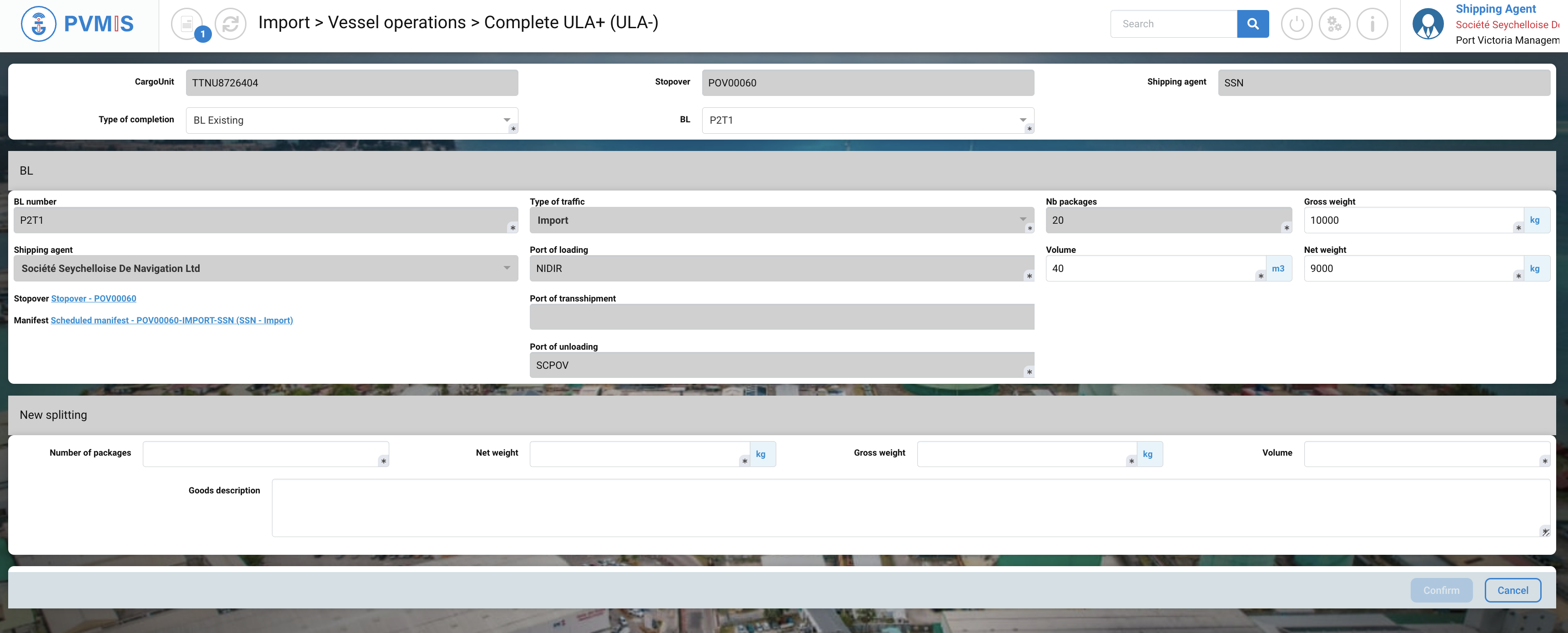

The BL information is presented, complete the New splitting section:

  • Number of packages

  • Net weight (kg)

  • Gross weight (kg)

  • Volume

  • Goods description

Capture d’écran 2023-11-10 à 11.21.54.png

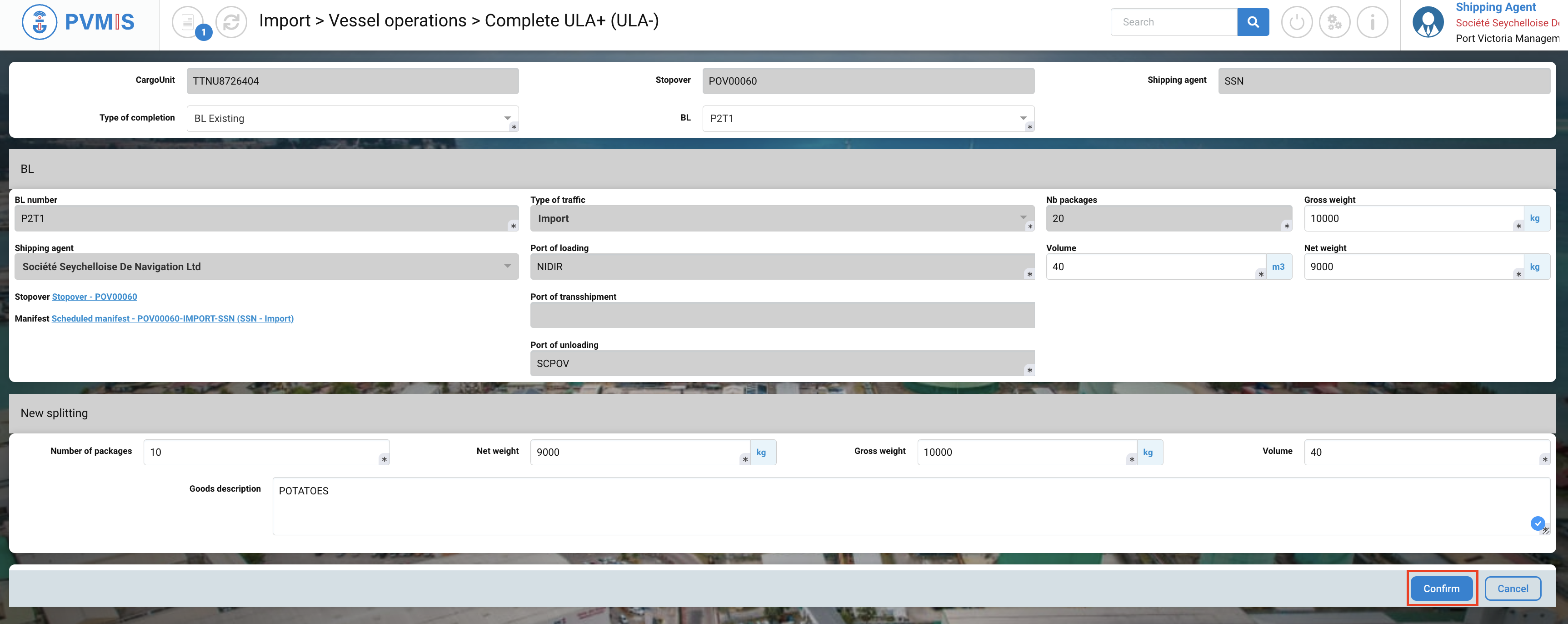

After completing, click on Confirm button:

Capture d’écran 2023-11-10 à 11.23.00.png

Attach a new BL

Select BL Existing in the Type of completion field:

Capture d’écran 2023-11-10 à 11.17.16.png

This is the creation form of a BL, complete it:

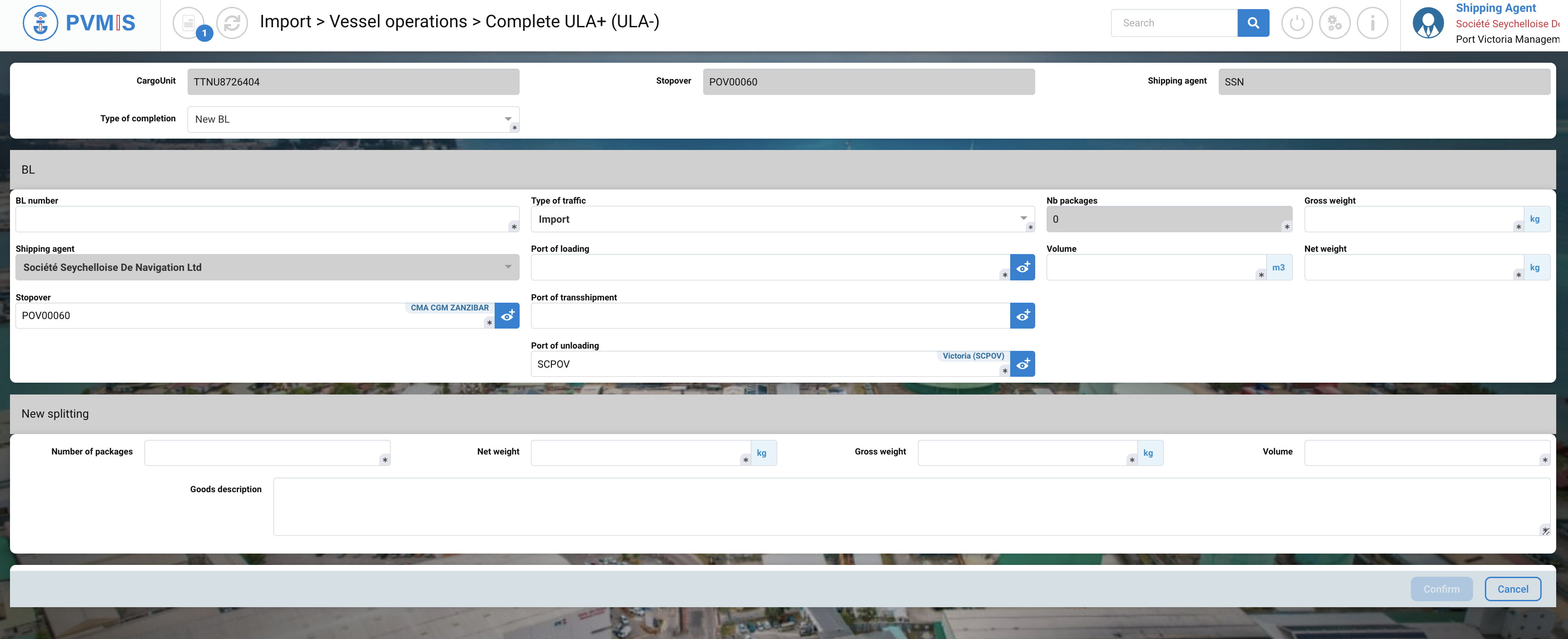

Capture d’écran 2023-11-10 à 11.23.53.png

For the BL section, you need to enter these fields:

Fields

Description

BL number*

Corresponds to the code number of the BL.

Type of traffic*

Pre-filled by Export, but you have the option to choose Export or Transshipment as well, depending on the specific process.

Nb packages*

Disabled field.

Gross weight (kg)*

Gross weight of the BL container.

Shipping agent

Pre-filed with the shipping agent information that was entered during the creation of the scheduled manifest.

Port of loading*

Pre-filed by SCPOV. Port of loading of goods of this BL.

Volume (m3)*

Volume of the BL container.

Net weight (kg)*

Net weight of the BL container.

Stopover*

Pre-filled with the stopover code that was associated with the manifest.

Port of transshipment

This refers to the port through which the goods will pass or transit on their way to another port.

Port of unloading*

Pre-filled by SCPOV, in the Import process, Victoria port is the port of unloading.

For the New splitting section, enter theses fields:

Fields

Description

Number of packages*

Corresponds to the number of packages into the CargoUnit.

Net weight (kg) *

Net weight of the CargoUnit.

Gross weight (kg) *

Gross weight of the CargoUnit.

Volume (m3) *

Vomume of the CargoUnit.

Goods description

Description of the goods.

When you complete, click on Confirm button:

Capture d’écran 2023-11-10 à 11.25.03.png

When all complements have been validated, the cargo unit is included in the manifest.

Capture d’écran 2023-11-10 à 11.40.04.png

If you want to attach several CargoUnits to the same BL at the same time, you can use the Cart action 👉 Completion of ULA+ / LOB+ from the Cart

Missing CargoUnit

If a container has been declared missing according to the stevedore, don’t take any action. It won’t appear in the definitive manifest.

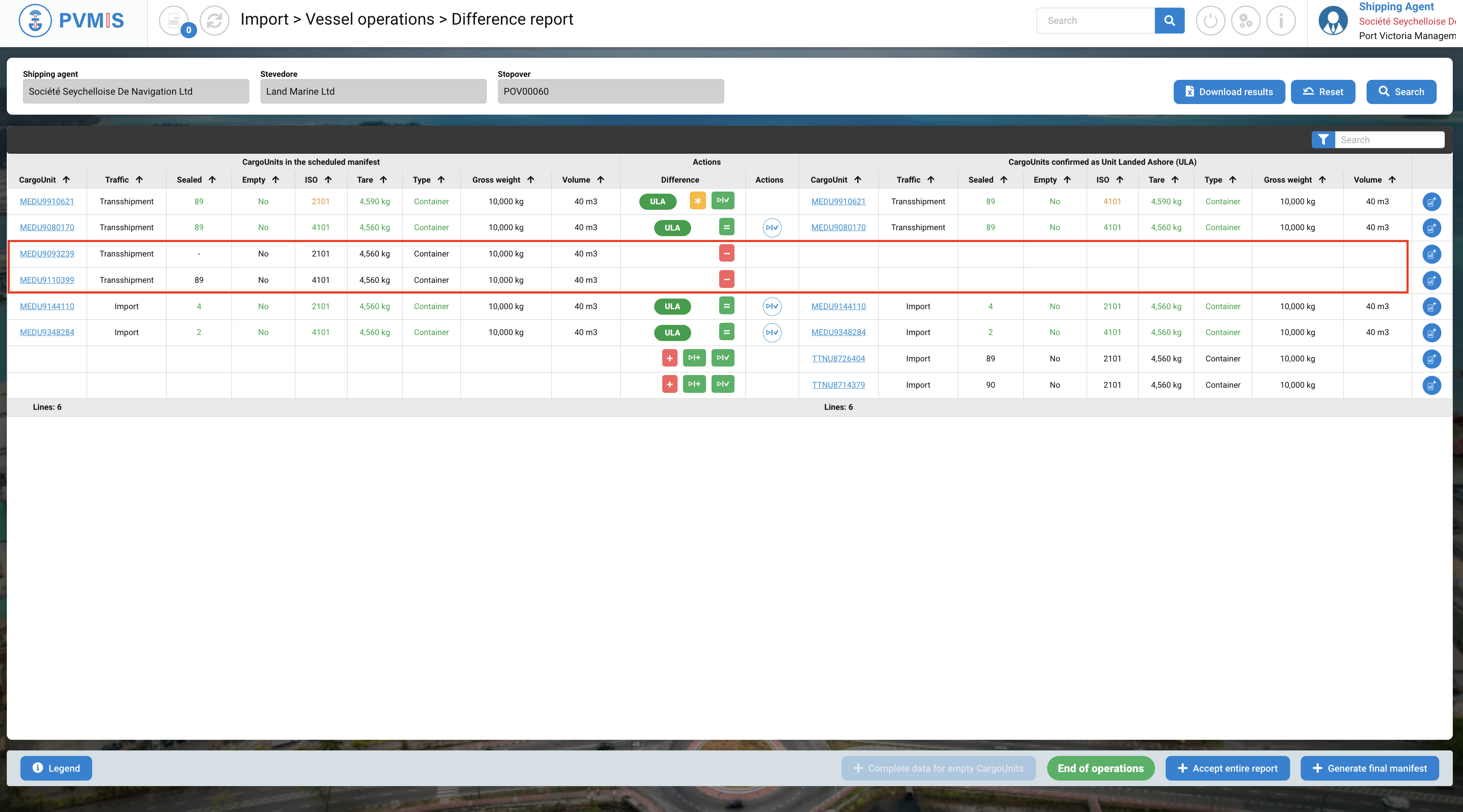

Capture d’écran 2023-11-10 à 11.41.30.png

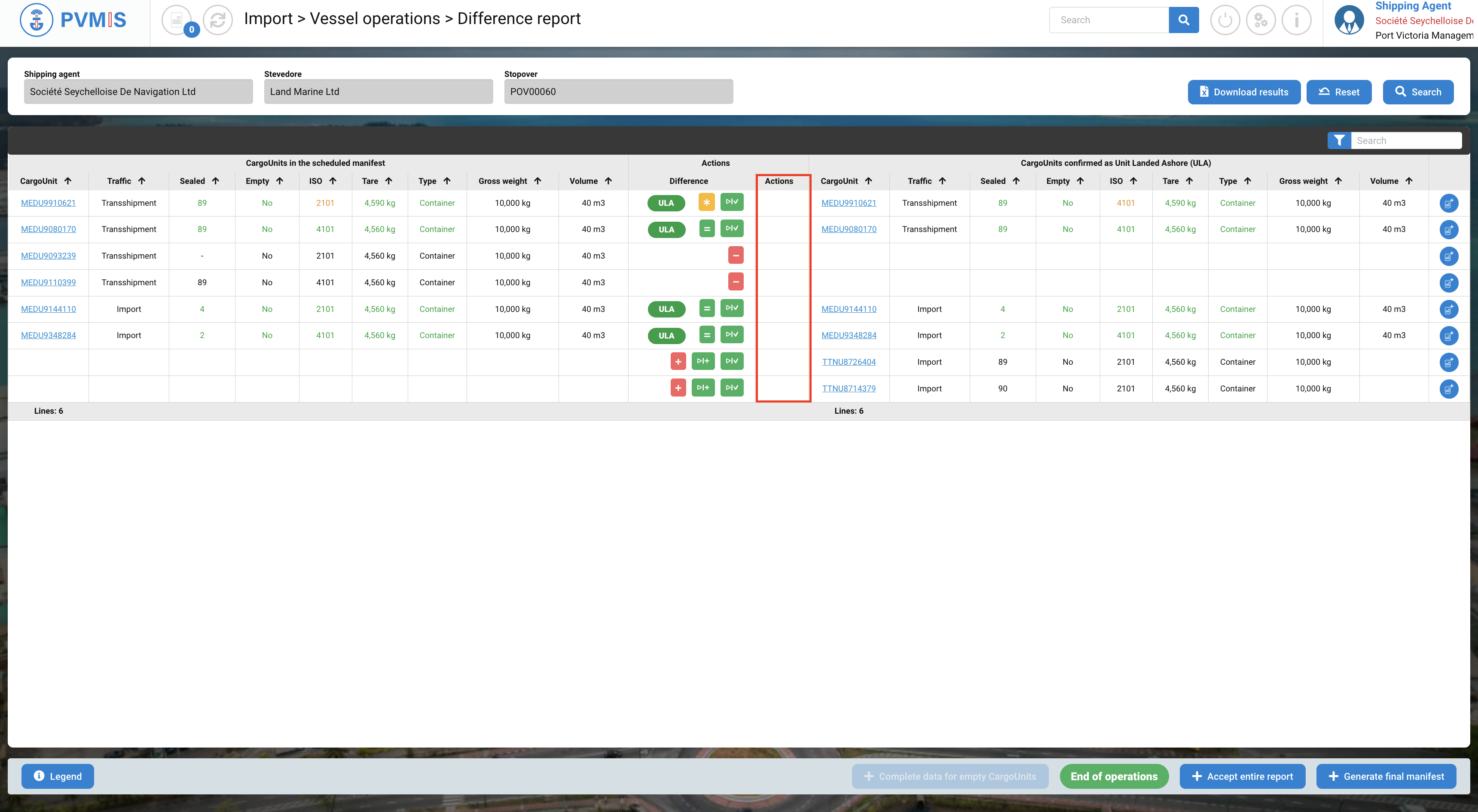

When you accept all difference for each line of CargoUnit, the Action column will be empty.

Capture d’écran 2023-11-10 à 11.43.27.png
